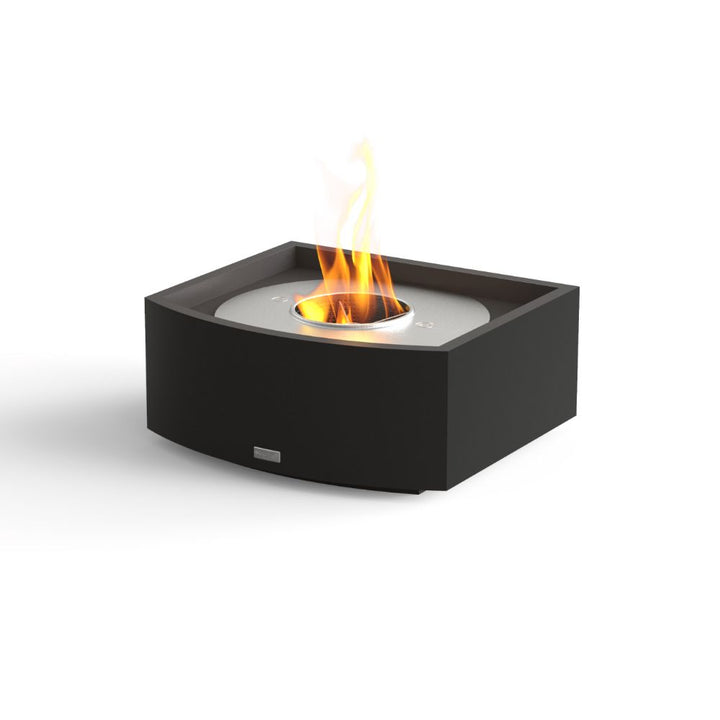

Grate 18 Ethanol Fireplace for Traditional Fireplaces

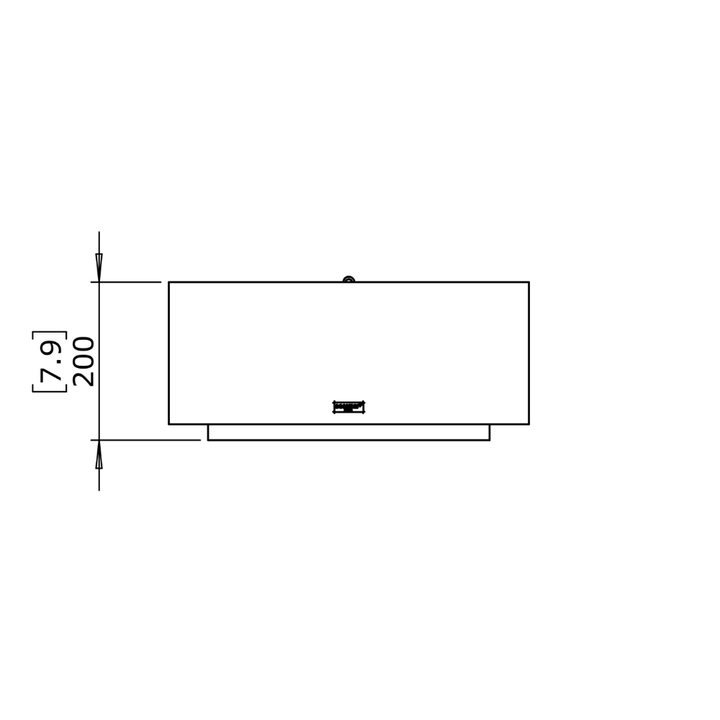

grate 18 ethanol fireplace for traditional fireplaces Technical Drawing Front View

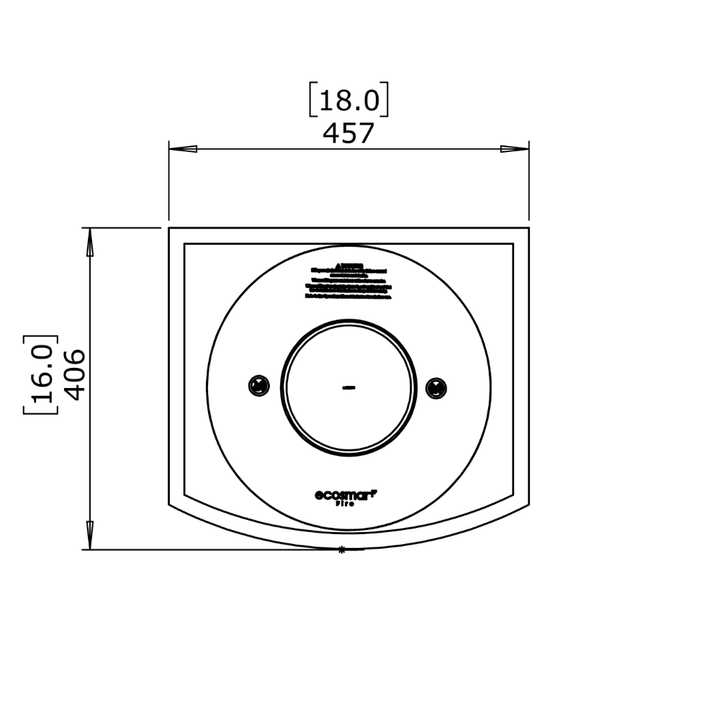

grate 18 ethanol fireplace for traditional fireplaces Technical Drawing Plan View

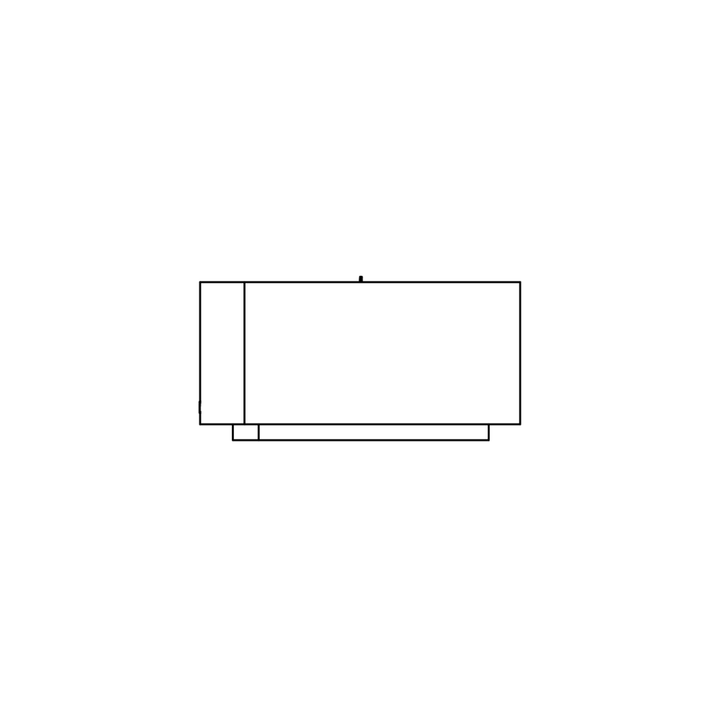

grate 18 ethanol fireplace for traditional fireplaces Technical Drawing Side View

$1,995.00

Free shipping available for this product.

Color

Graphite

Burner

Stainless Steel

In stock, ready to ship
Inventory on the way

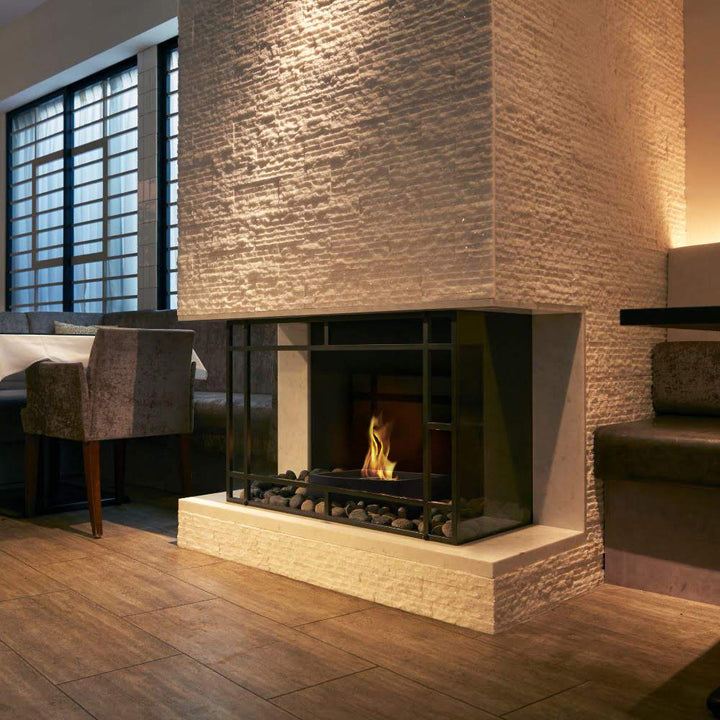

Convert a traditional fireplace into a clean-burning bioethanol fire
Produces a beautiful and vibrant orange flame for up to 11 hours.
90% generated heat efficiency provides maximum value.
Clean Burning, No smoke, soot or ash, allows safe, stress-free and indoor use.
Fueled with Bioethanol, a readably available renewable resource.
ACCC Safety Mandate compliant.
Two-year warranty for the burner.

Dimensions: 457mm x 406mm x 200mm
Weight: 16.40Kg
Materials: Stainless Steel Grade 304 & Fluid™ Concrete
Colour: Stainless Steel, Graphite
Thermal Output: 6.1 MJ/h - 5800 BTU/h - 1.7 kW
Fuel Capacity: 2.5 litres
Burn Time: 8 hours
Heats on Average: 20m2
Minimum Room: 40m3

What's Included:
1x Grate 18 Insert
1x AB8 Burner
1x Efficiency Ring
1x Fire Lighter
1x Lighting Rod
1x 5L Jerry Can
1x Bottle Adaptor
2x Manuals

What's Needed:
e-NRG Bio-Ethanol Fuel
Can of Lighter Butane

Model Specifications Sheet
Clearances & Installation Manual
Operation & Maintenance Manual

CAD Files
