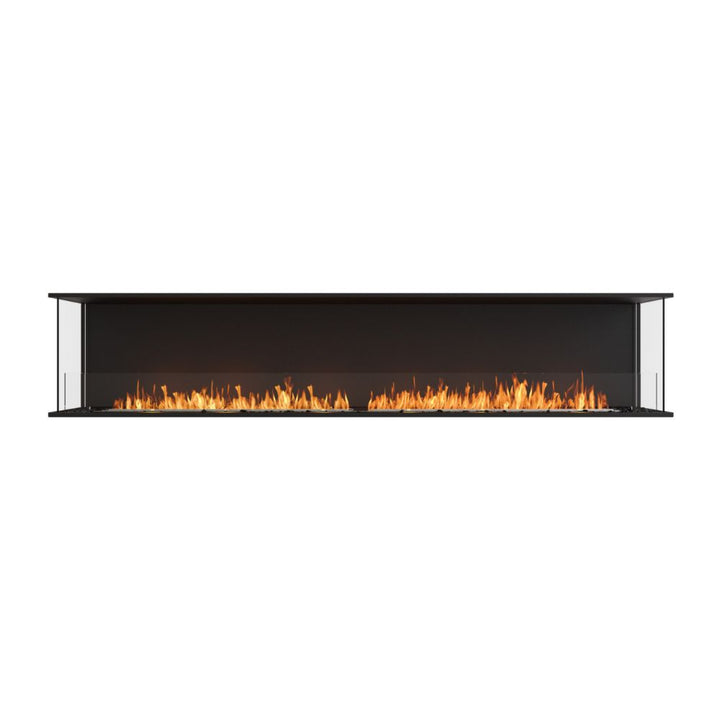

flex 104by ethanol bay fireplace insert

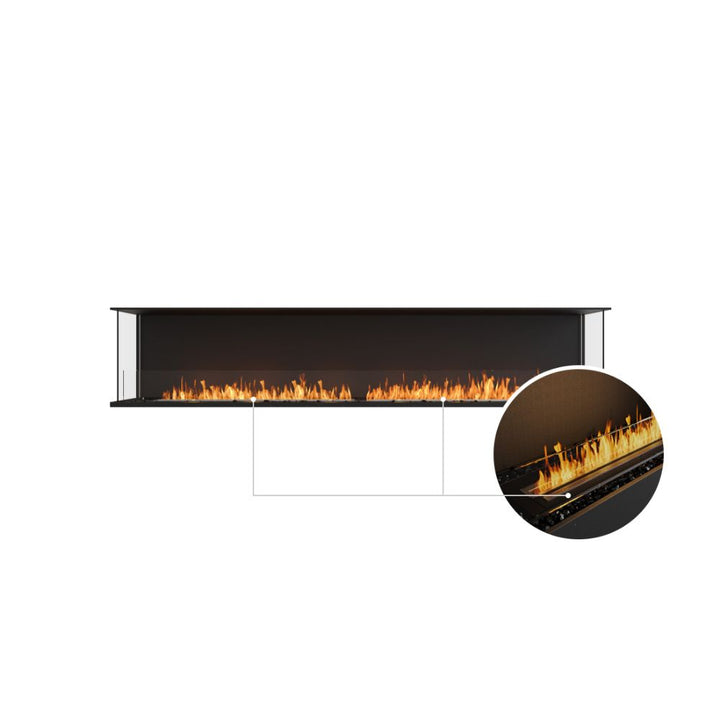

flex 104by ethanol bay fireplace insert black ceramic

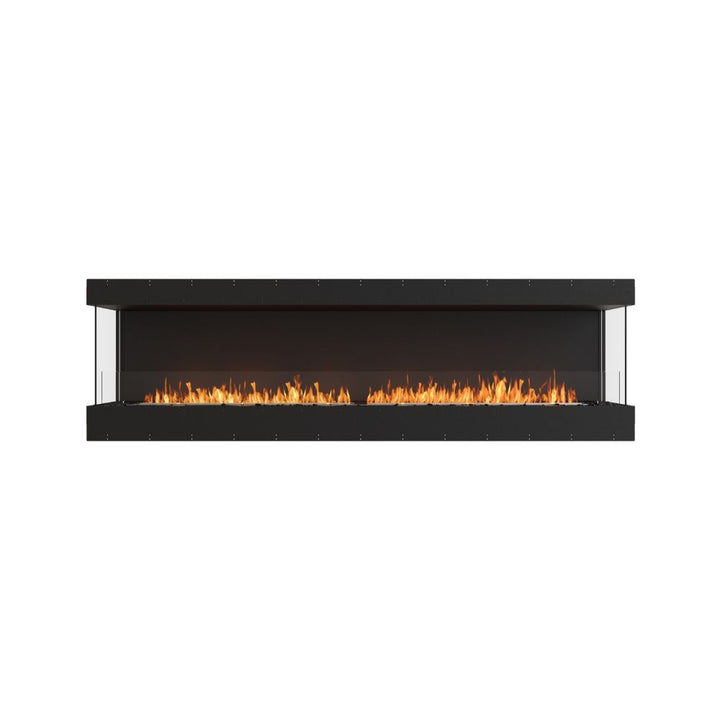

flex 104by ethanol bay fireplace insert flange

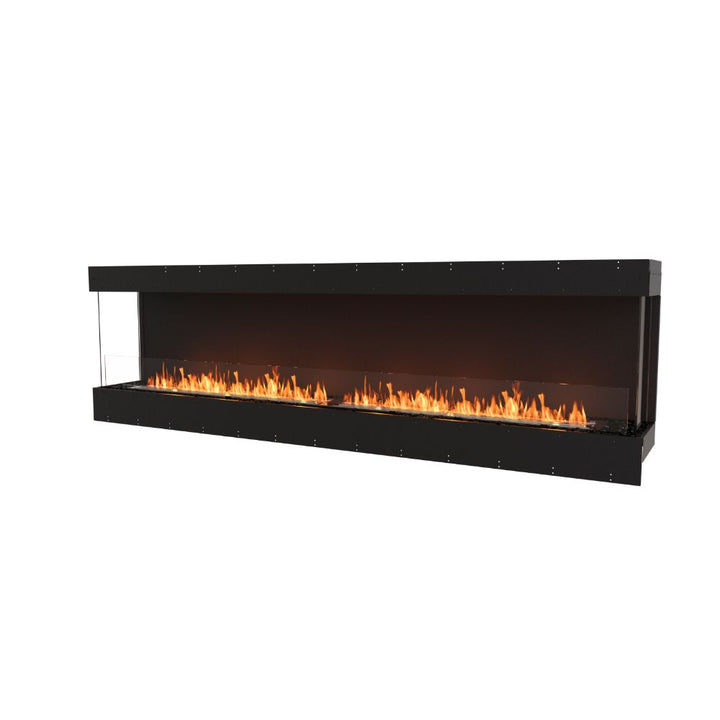

flex 104by ethanol bay fireplace insert flange angle

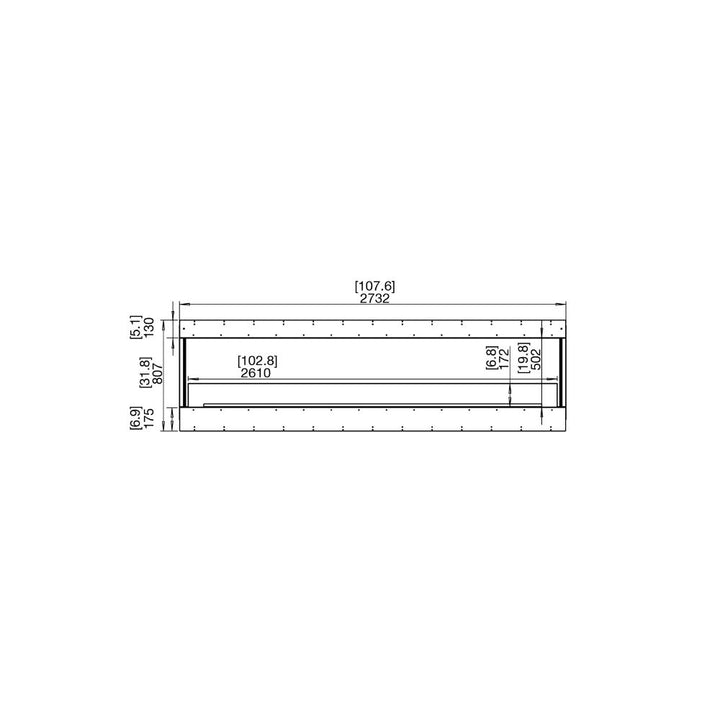

flex 104by ethanol bay fireplace insert technical drawing front

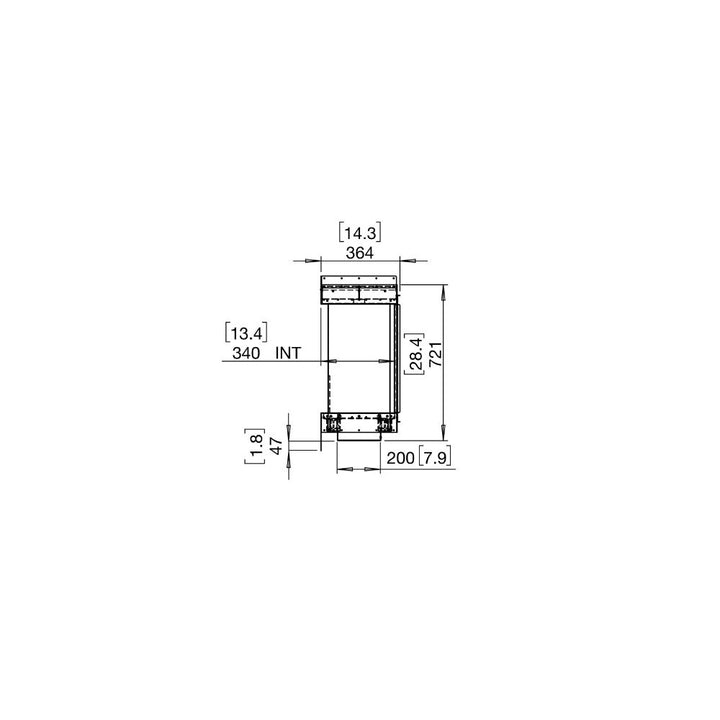

flex 104by ethanol bay fireplace insert technical drawing side

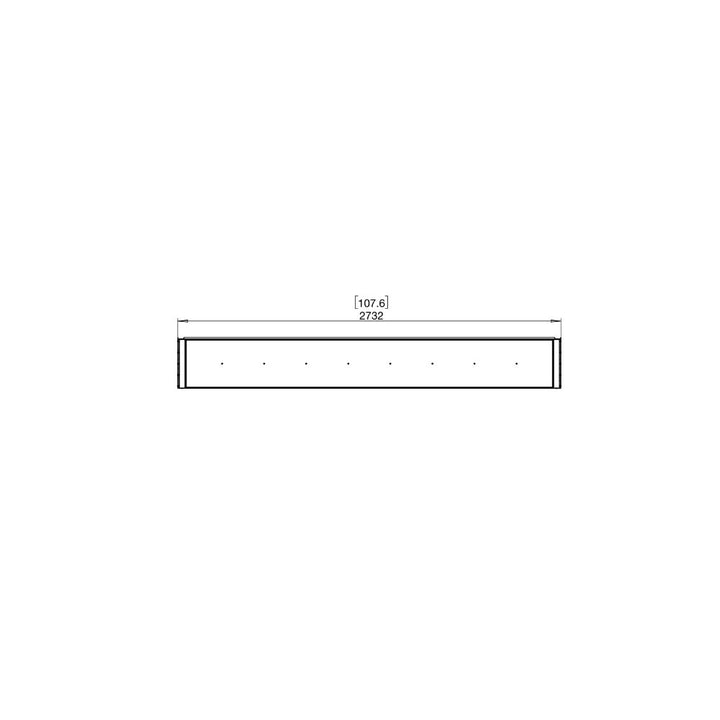

flex 104by ethanol bay fireplace insert technical drawing top

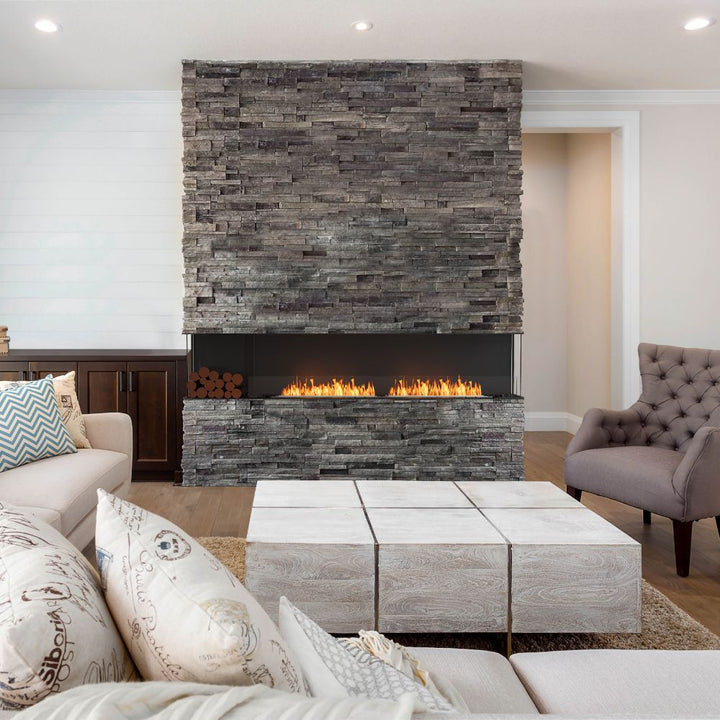

flex 104by ethanol bay fireplace insert stone feature wall

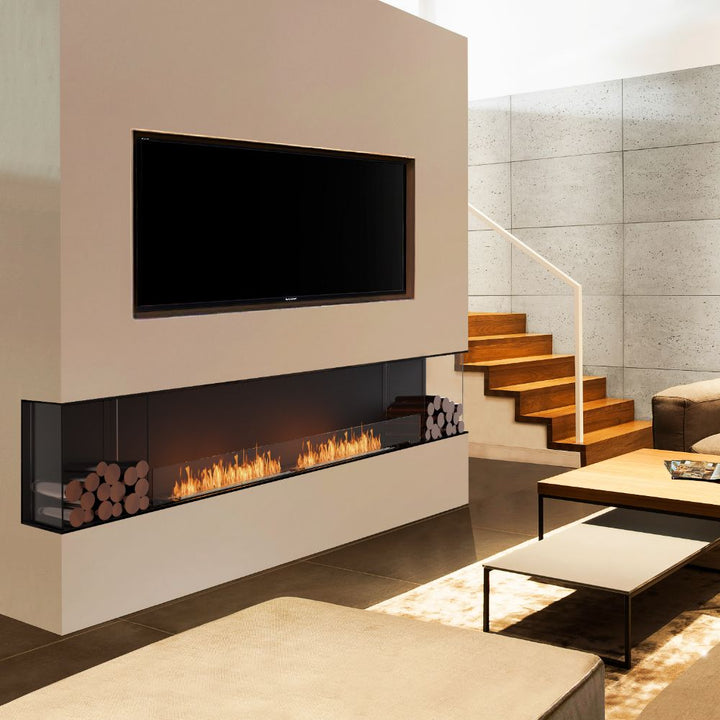

flex 104by ethanol bay fireplace insert lounge room tv above

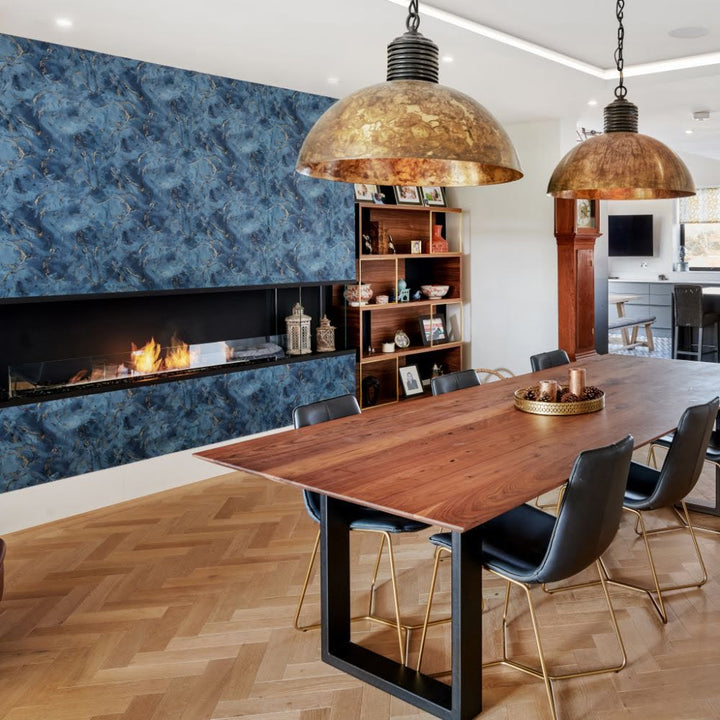

flex 104by ethanol bay fireplace insert dining room wooden table

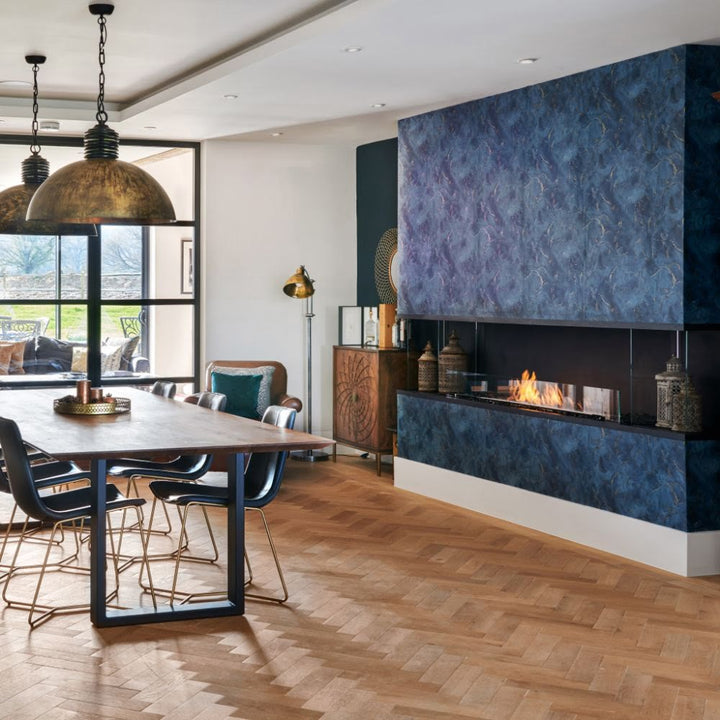

flex 104by ethanol bay fireplace insert dining room blue feature

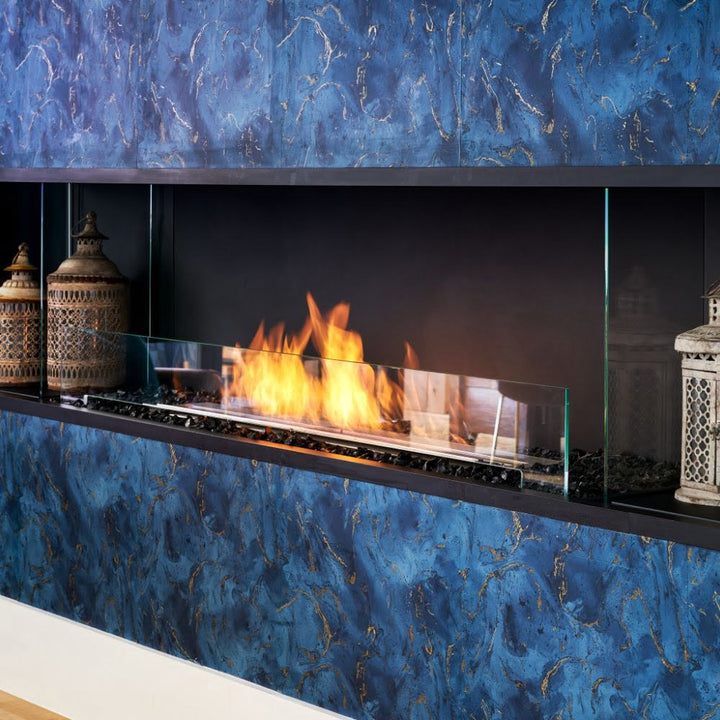

flex 104by ethanol bay fireplace insert blue wall

EcoSmart Fire

Flex 104BY Bay Ethanol Fireplace Insert

ESF.FX.104BY

Sale price$11,995.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • 264cm three sided viewing area.
  • Zero clearance installation allows for maximum design flexibility.
  • Toughened glass screens, established flame, and created a safe -barrier.
  • Durable construction suitable for both indoor and outdoor use, preventing rust.
  • Customisable design with decorative boxes for a personalized aesthetic.
  • Backed by extensive R&D, ensuring safety, efficiency, and global compliance standards.
  • No gas, no electricity and no flue for an effortless set-up.
  • Produces a beautiful and vibrant orange flame for up to 12 hours.
  • 90% generated heat efficiency provides maximum value.
  • Clean Burning, No smoke, soot or ash, allows safe, stress-free and indoor use.
  • Fueled with Bioethanol, a readably available renewable resource.
  • ACCC Safety Mandate compliant.
  • Two-year warranty for the burner.

Viewing Area Dimensions: 2645mm x 340mm x 502mm
Model Dimensions: 2732mm x 365mm x 807mm
Weight: 146kg
Materials: Mild Steel, Toughened Glass
Colour: Black
Thermal Output: 34 MJ/h - 30580 BTU/h - 9 kW
Fuel Capacity: 20 litres
Burn Time: 9-14 hours
Heats on Average: 130m2
Minimum Room: 230m3

What's Included:
1x Flex 104BY Fireplace Insert
2x XL1200 Burner
1x Black Glass Charcoal
2x Fire Lighter
2x Lighting Rod
2x 5L Jerry Can
2x Bottle Adaptor
2x Manuals

What's Needed:
e-NRG Bio-Ethanol Fuel
Can of Lighter Butane

Real flames. Real ambience.

No Flue. No Gas. No Electricity.

Seamless integration.

Nothing to service. Ever.

Real flames.

Not electric. Not simulated. Actual fire.
So you can light it on a Saturday evening and feel the room change the moment it's lit.

No flue, no chimney, no gas, no electrical.

The fireplace you thought wasn't possible actually is.
So you can have it on that internal wall, in that apartment, in that renovation.

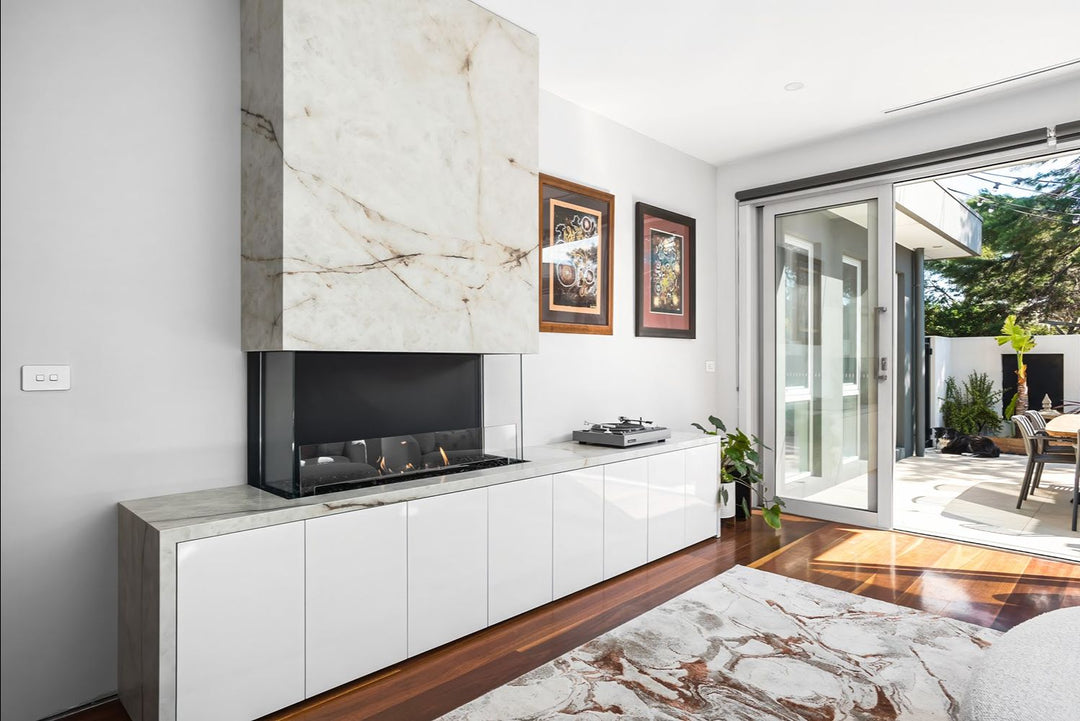

Seamless integration.

Plaster, stone, laminate, porcelain — whatever you build around it becomes the fireplace.
So you can finish the room exactly how you imagined it, without compromise.

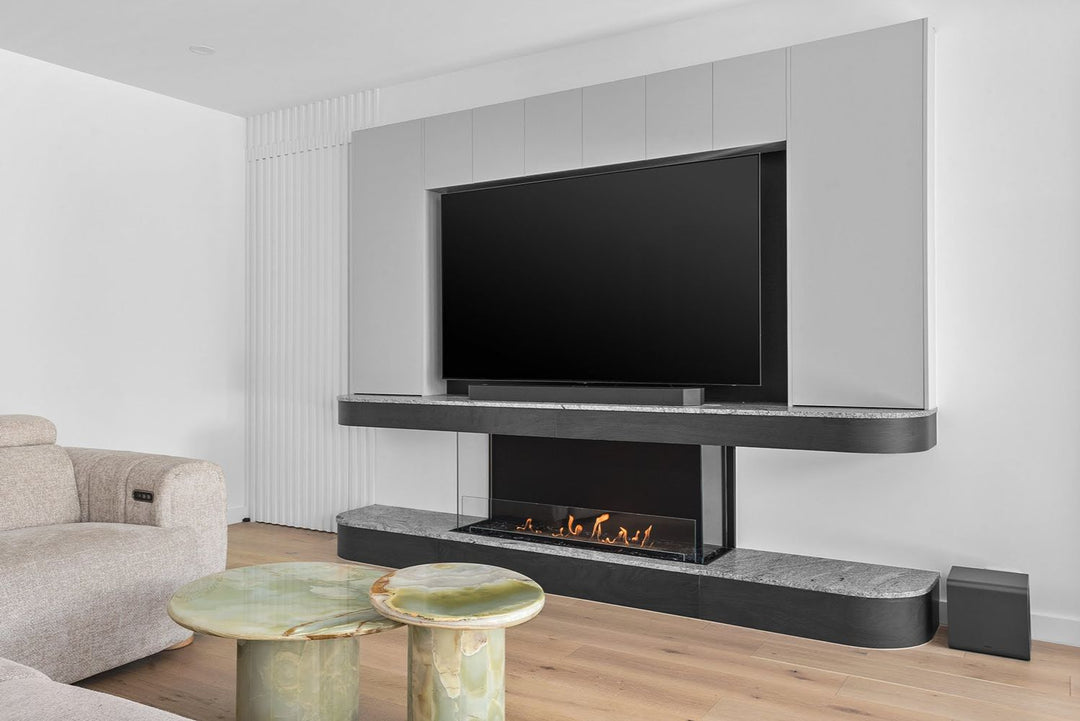

Zero servicing.

No annual checks, no maintenance contracts, no parts to break.
So you can forget it exists — until you want to use it.

No smoke, no ash, no odour.

It burns clean — nothing left behind.
So you can light it for a dinner party and wake up to a room that smells exactly as it did before.

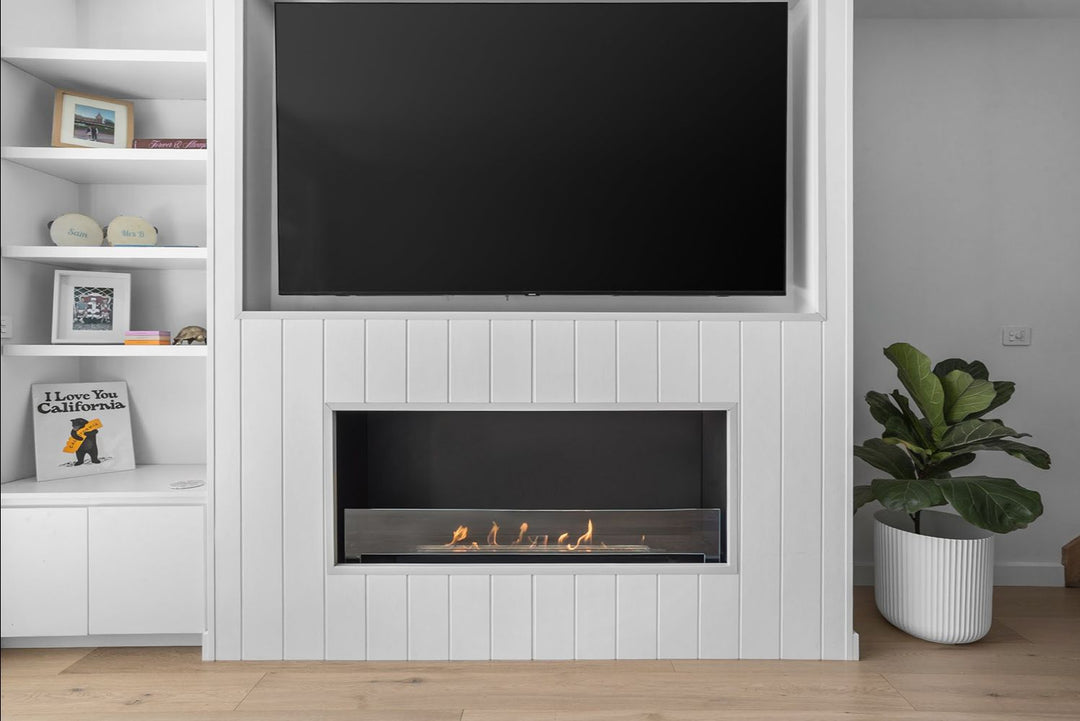

Real heat. Not just ambience.

Zone heating that complements your home's existing system.
So you can turn the thermostat down and let the fire do the work.

ACCC compliant.

Tested and certified to the Australian standard for bioethanol fireplaces.
So you can get through the build without a single compliance conversation.

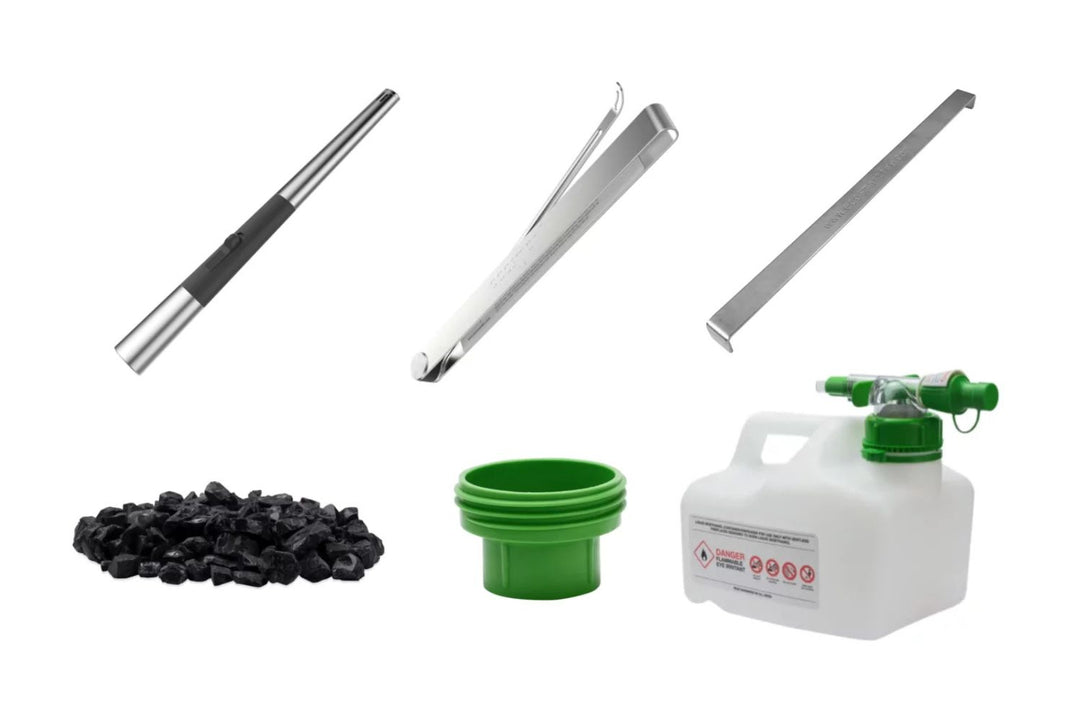

Included Accessories

Fire Lighter

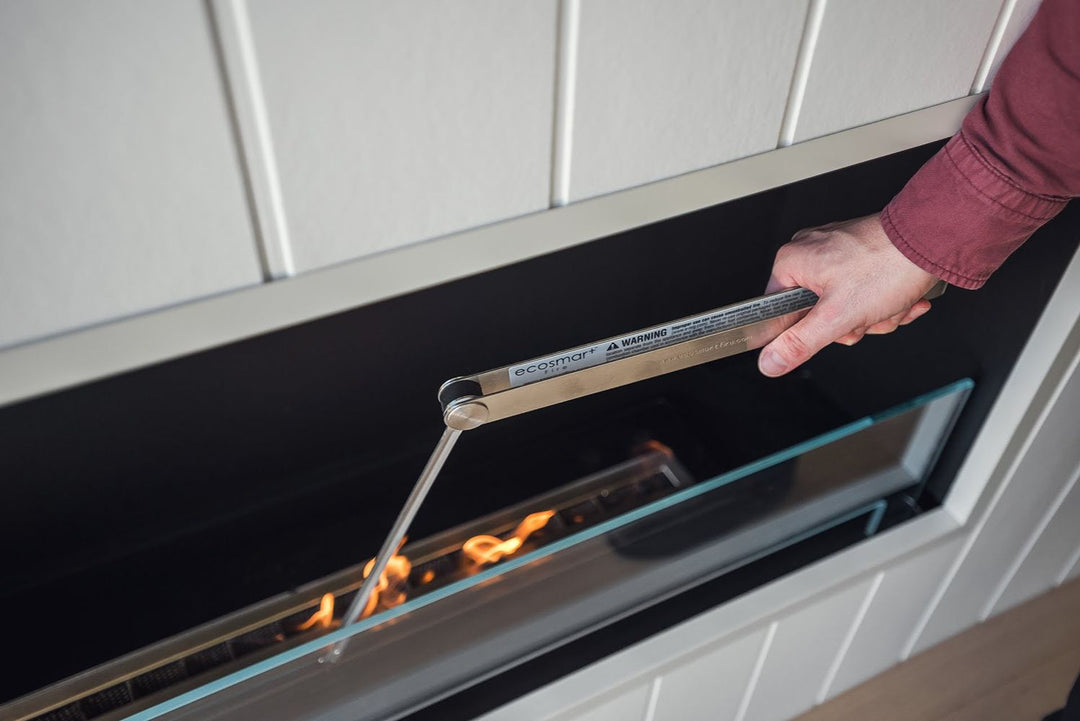

Lighting Rod
Flame Regulating Baffles
Black Glass Charcoal
Bottle Adaptor
5L Jerry Can

Specifications

Viewing Area Dimensions: 2645mm x 340mm x 502mm
Model Dimensions: 2732mm x 365mm x 807mm
Weight: 146kg
Materials: Mild Steel, Toughened Glass
Colour: Black
Thermal Output: 34 MJ/h - 30580 BTU/h - 9 kW
Fuel Capacity: 20 litres
Burn Time: 9-14 hours
Heats on Average: 130m2
Minimum Room: 230m3
