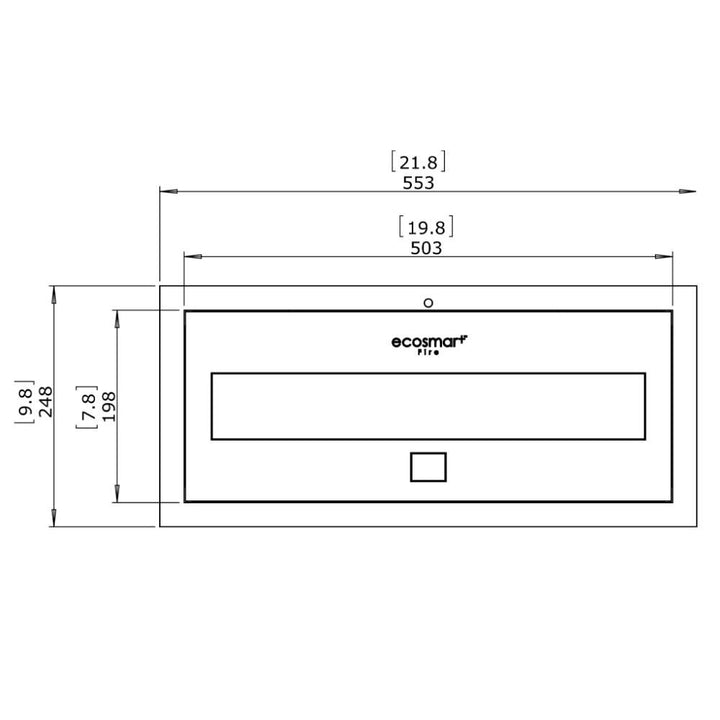

XL500 Ethanol Burner Insert Technical Drawing Plan View

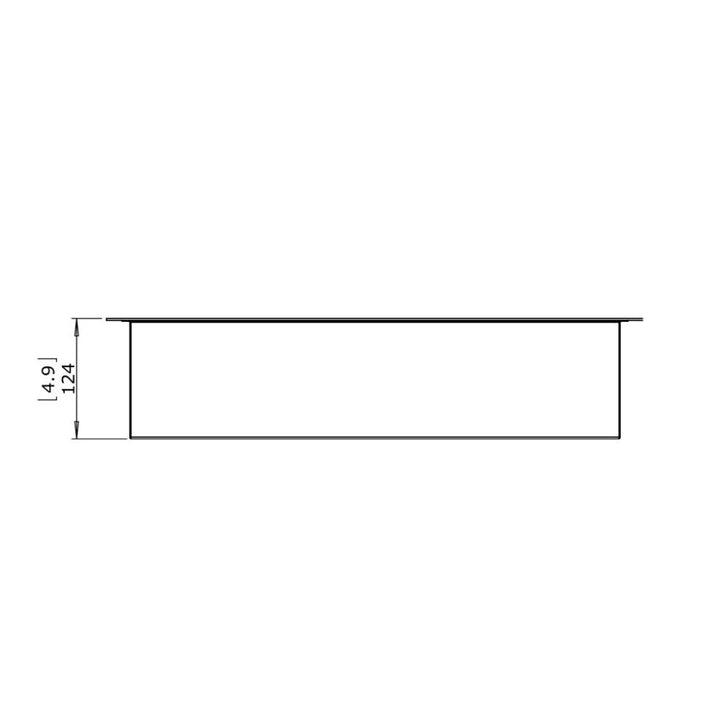

XL500 Ethanol Burner Insert Technical Drawing Front View

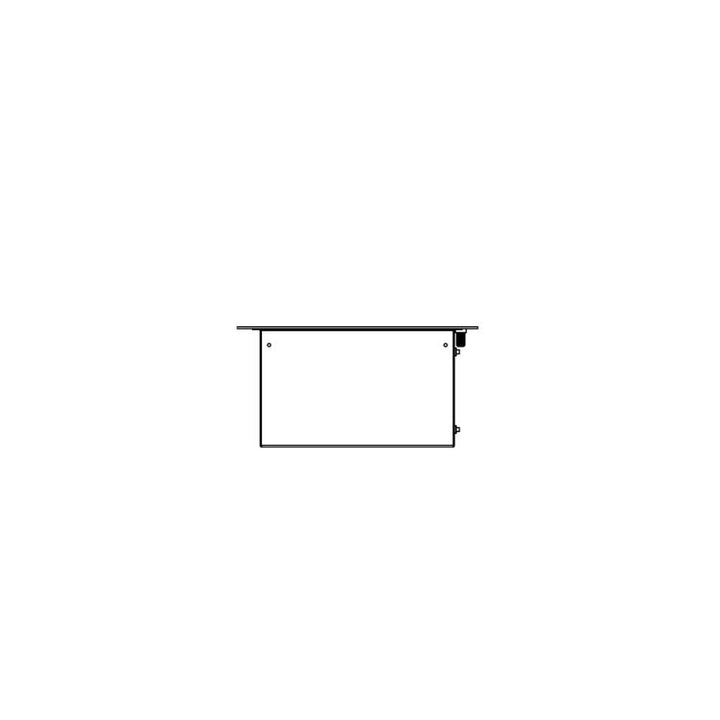

XL500 Ethanol Burner Insert Technical Drawing Side View

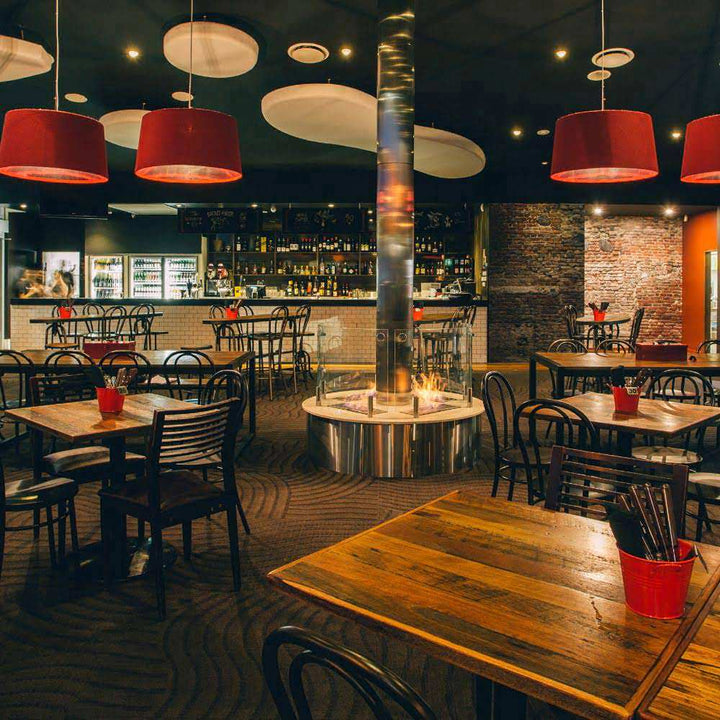

XL500 Ethanol Burner Insert Classic Cafe Glow

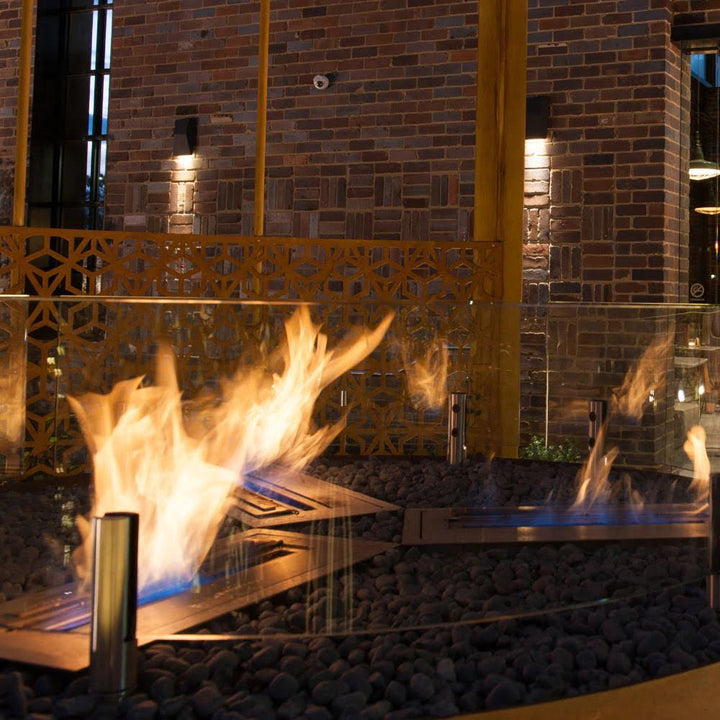

XL500 Ethanol Burner Insert Contemporary Living Space

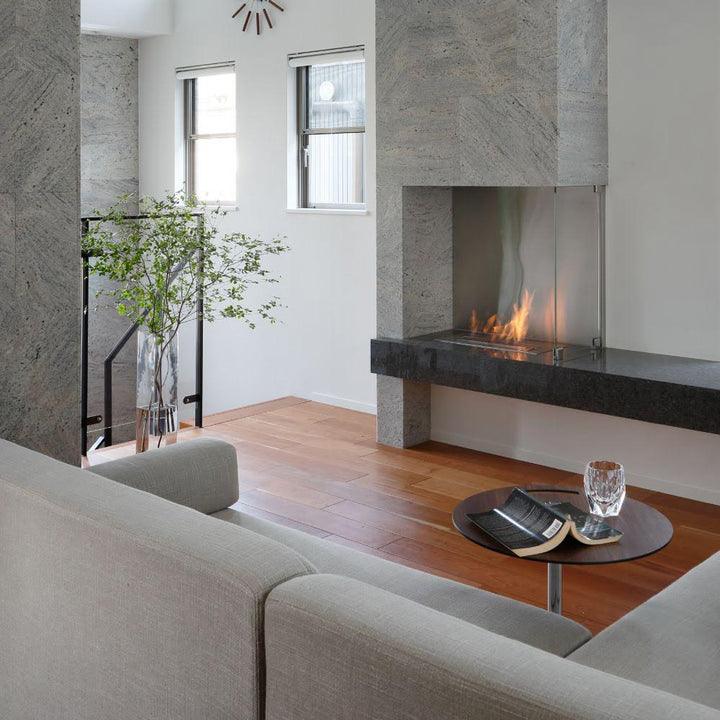

XL500 Ethanol Burner Insert Minimalist Interior Warmth

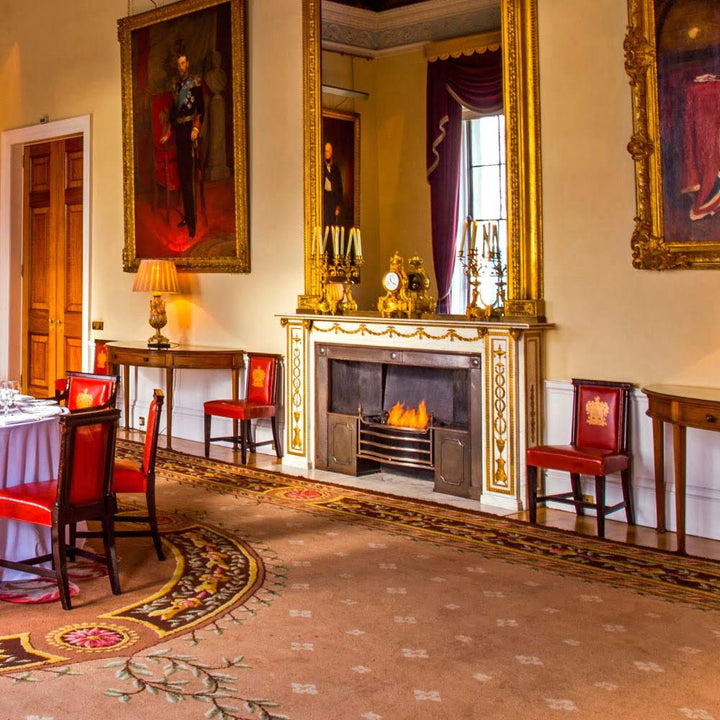

XL500 Ethanol Burner Insert Modern Patio Centre

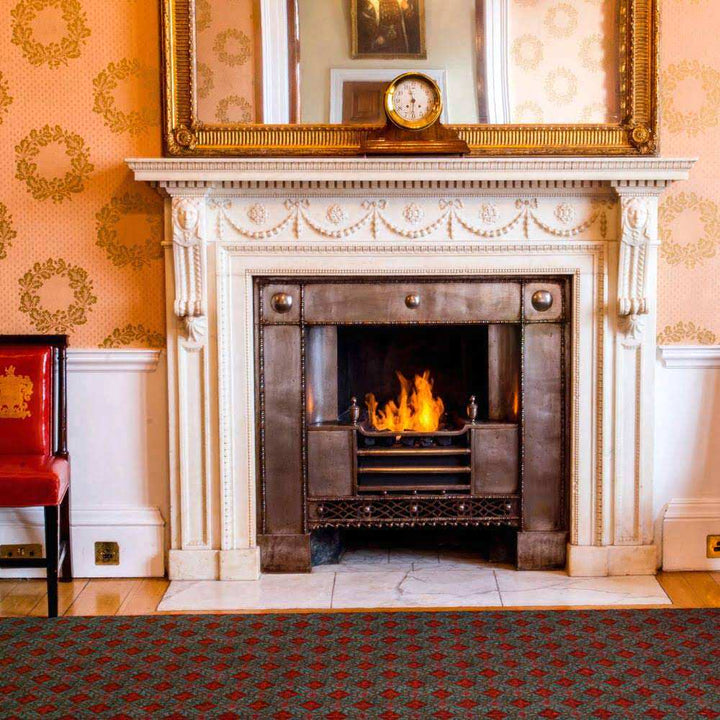

XL500 Ethanol Burner Insert Ornate Mantlepiece Focal Point

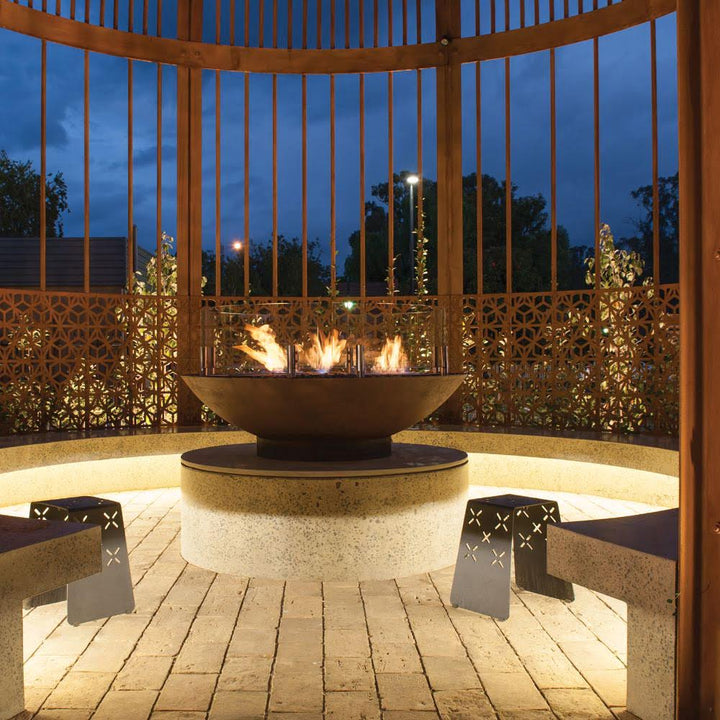

XL500 Ethanol Burner Insert Terrace View Fire Feature

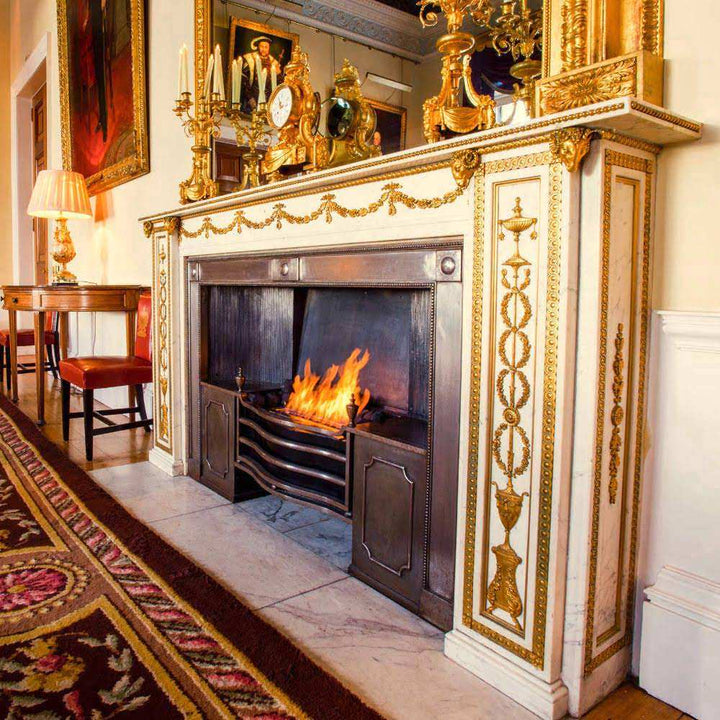

XL500 Ethanol Burner Insert Traditional Fireplace Setting

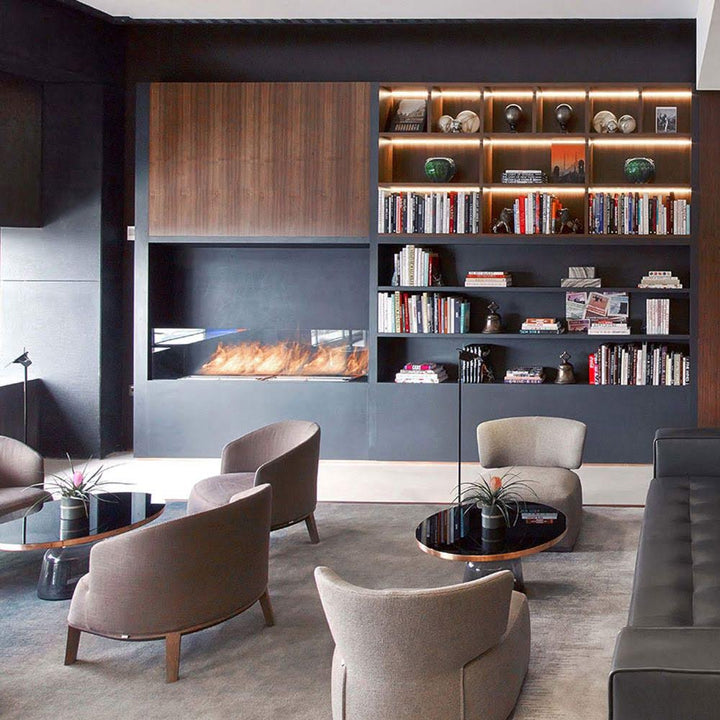

XL500 Ethanol Burner Insert Upscale Lounge Ambience

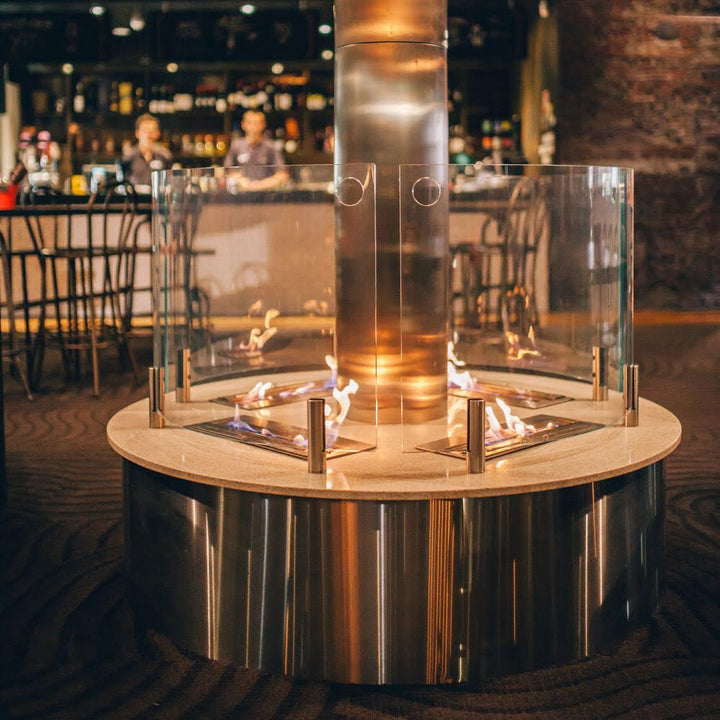

XL500 Ethanol Burner Insert Vintage Bar Flare

$2,495.00

Free shipping available for this product.

Burner

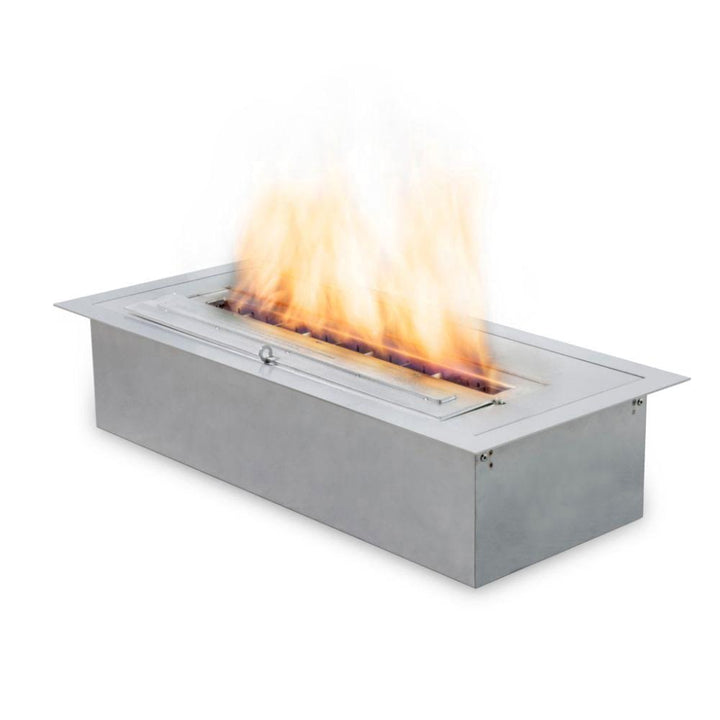

Stainless Steel

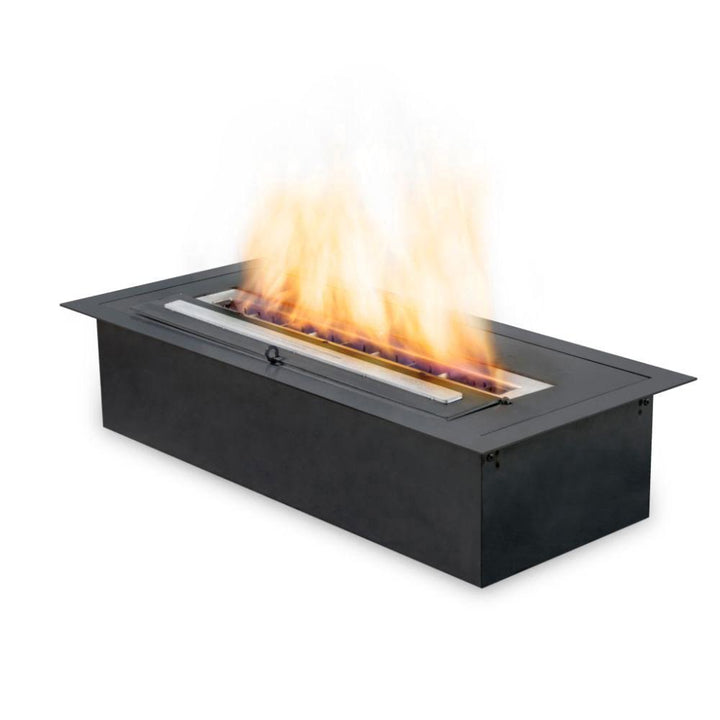

Black Ceramic Coated

In stock, ready to ship
Inventory on the way

No gas, no electricity and no flue for an effortless set-up.
Produces a beautiful and vibrant orange flame for up to 10 hours.
90% generated heat efficiency provides maximum value.
Clean Burning, No smoke, soot or ash, allows safe, stress-free and indoor use.
Fueled with Bioethanol, a readably available renewable resource.
ACCC Safety Mandate compliant.
Two-year warranty for the burner.

Dimensions: 553mm x 248mm x 124mm
Weight: 9.1Kg
Materials: Stainless Steel Grade 304
Colour: Stainless Steel, Black
Thermal Output: 12 MJ/h - 11430 BTU/h - 3.4 kW
Fuel Capacity: 2.5 litres
Burn Time: 5 hours
Heats on Average: 40m2
Minimum Room: 80m3

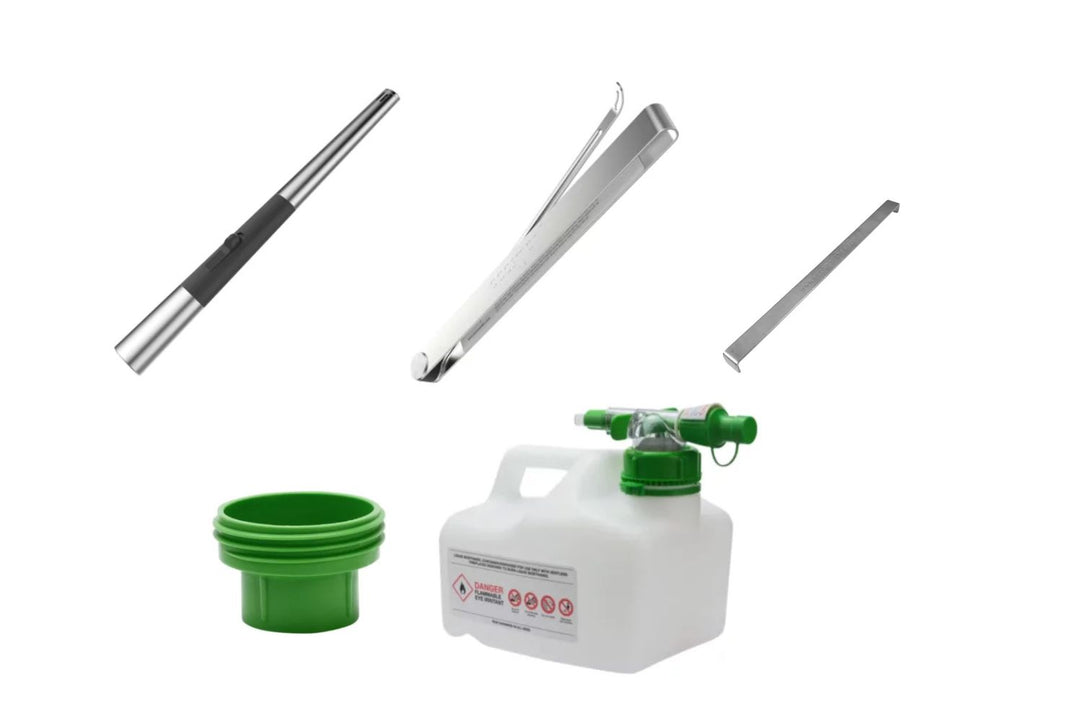

What's Included:
1x XL500 Burner
1x XL500 Top Tray
1x XL Baffles
1x Fire Lighter
1x Lighting Rod
1x 5L Jerry Can
1x Bottle Adaptor
2x Manuals

What's Needed:
e-NRG Bio-Ethanol Fuel
Can of Lighter Butane

Model Specifications Sheet
Operation & Maintenance Manual

CAD Files

[{"id":47757312393538,"title":"Stainless Steel","option1":"Stainless Steel","option2":null,"option3":null,"sku":"ESF.B.XL5.WTT","requires_shipping":true,"taxable":true,"featured_image":{"id":44020916420930,"product_id":9078157672770,"position":1,"created_at":"2024-02-04T16:00:35+11:00","updated_at":"2024-02-04T16:04:52+11:00","alt":"XL500 Ethanol Burner Insert Stainless Steel","width":1000,"height":1000,"src":"\/\/chamadesign.com.au\/cdn\/shop\/files\/XL500-Ethanol-Burner-Insert-Stainless-Steel.jpg?v=1707023092","variant_ids":[47757312393538]},"available":true,"name":"XL500 Ethanol Burner Insert - Stainless Steel","public_title":"Stainless Steel","options":["Stainless Steel"],"price":249500,"weight":0,"compare_at_price":249500,"inventory_management":null,"barcode":"819283020090","featured_media":{"alt":"XL500 Ethanol Burner Insert Stainless Steel","id":36494194311490,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/chamadesign.com.au\/cdn\/shop\/files\/XL500-Ethanol-Burner-Insert-Stainless-Steel.jpg?v=1707023092"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47757312426306,"title":"Black Ceramic Coated","option1":"Black Ceramic Coated","option2":null,"option3":null,"sku":"ESF.B.XL5.WTT.BL","requires_shipping":true,"taxable":true,"featured_image":{"id":44020918944066,"product_id":9078157672770,"position":2,"created_at":"2024-02-04T16:01:36+11:00","updated_at":"2024-02-04T16:04:52+11:00","alt":"XL500 Ethanol Burner Insert Black Ceramic","width":1000,"height":1000,"src":"\/\/chamadesign.com.au\/cdn\/shop\/files\/XL500-Ethanol-Burner-Insert-Black-Ceramic.jpg?v=1707023092","variant_ids":[47757312426306]},"available":true,"name":"XL500 Ethanol Burner Insert - Black Ceramic Coated","public_title":"Black Ceramic Coated","options":["Black Ceramic Coated"],"price":299500,"weight":0,"compare_at_price":299500,"inventory_management":null,"barcode":"819283020106","featured_media":{"alt":"XL500 Ethanol Burner Insert Black Ceramic","id":36494197195074,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/chamadesign.com.au\/cdn\/shop\/files\/XL500-Ethanol-Burner-Insert-Black-Ceramic.jpg?v=1707023092"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

By Type

By Style

By Location

Fire Pits

XL500 Ethanol Burner Insert

No smoke, No Mess, Low Odour

Quick & Easy Installation

No Gas, No Flue, No Electricity

Indoor & Outdoor Suitable
